Plasma Thawer

Release time:2023-3-21      Reads:2892

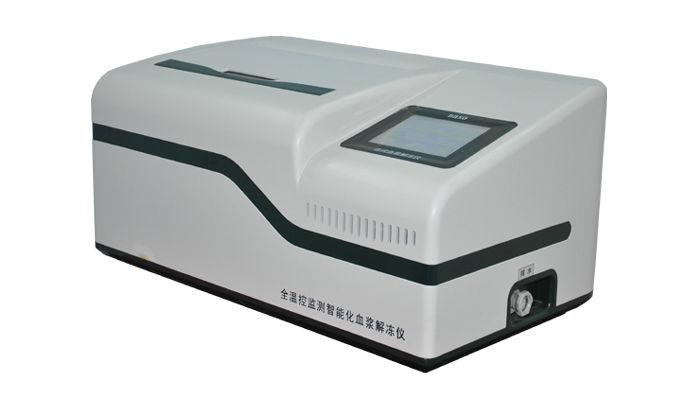

Plasma Thawing System

(Intelligent Temperature Control)

Certificate:EN ISO 13485:2016

Features:

1. Convenient ways to thaw

    Five thawing modes available:

                 A. Normal mode;                B. floating thaw control endpoint;                 C. procedure cooling mode;

                 D. Manual mode;                E. Emergency insert   mode;

2. Quality control system

    A. Quality control in normal mode

    By analyzing the simulating plasma bag's feedback data, Baso's Plasma Thawing System adjusts the thawing

    process accordingly to ensure quality of the thawed plasma (Core temperature is 33°C);

    B. The quality management of the water monitoring system

    By examining the temperature difference (△T) between the upper and lower water tank temperature probes,

    it can monitor accuracy of the temperature probes to meet the quality control requirements.

3. QC data traceability

    In the thawed state, the instrument can dynamically test and analyze the core temperature of analog plasma

    bags, and the temperature of the upper and lower water tanks. The results are automatically saved to

    provide quality management and traceability data.

4. Intelligent operating system

    A touch-screen interface provides real-time display of temperture/time curve. Moreover, a user-friendly

    troubleshooting system facilitates repair by providing specific error messages that pinpoint the location

    and cause of problem.



Technical Parameters:

Model

BSJD-I-22/BSJD-T-01

BSJD-Y-32/12

Thawing Mode

Five modes available

On the same device, dry or wet thawing can be operated for only replace the plasma frame, the first dry and wet dual-use model in China.

Max.Plasma Capacity

200ml  28bags/12bags

200ml 32bags/12bags

QC Data Traceability

In the thawed state, the instrument can dynamically test and analyze the core temperature of analog plasma bags, and the temperature of the upper and lower water tanks. The results are automatically saved in order ot provide quality management and traceability data.

Water Temperature Monitoring System

The temperature difference (T) between the upper and lower water tank temperature probes is analyzed to determine whether the accuracy of the temperature probes meet the  quality control requirements.

QC System

By analyzing the simulating plasma bag’s feedback data, Baso's Plasma Thawing System adjusts the thawing process accordingly to ensure quality of the thawed plasma.

WIFI

Support WIFI function; Data can be saved and transported to the PC though WIFI and the real-time data display in the LCD.

Intelligent Operation System

Microcomputer touch screen provides a real-time display of Temp. / Time curve.

A user-friendly troubleshooting system facilitates repair by providing specific error messages that pinpoint the location and cause of problem.

Data Records and Storage

Up to 2000 sets data can be processed, recorded and stored.

Scanning Function

Scanner available; barcode scanning and entry data

Pump Capacity

60L/min or 30L/min; Automatic filling and drainage, preheating, heating, and cycling.

Integrated water tank with automatic filling/draining, preheating, heating and cyclic cleaning.

Rated Power

4000W

4000W

Weight

140KG/45KG

140KG

Dimensions (L*W*H)

1000*640*940(mm)/

730*450*370(mm)

 1000*640*940(mm)

Temperature range and precision

Room temperature ~41°C  / ± 0.1°C

Vibration frequency

30r/min

Thawing time

Completion of a full load of bags within 30 min.

Time function

1~99 min

Power Supply

220v ± 10% / 50Hz
